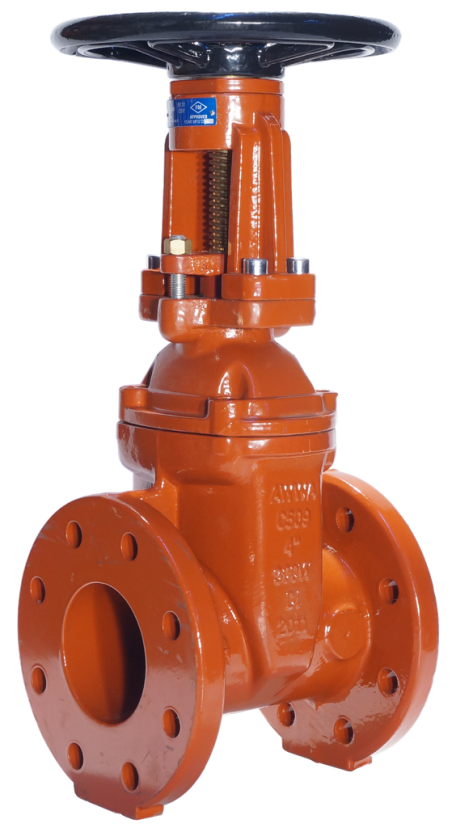

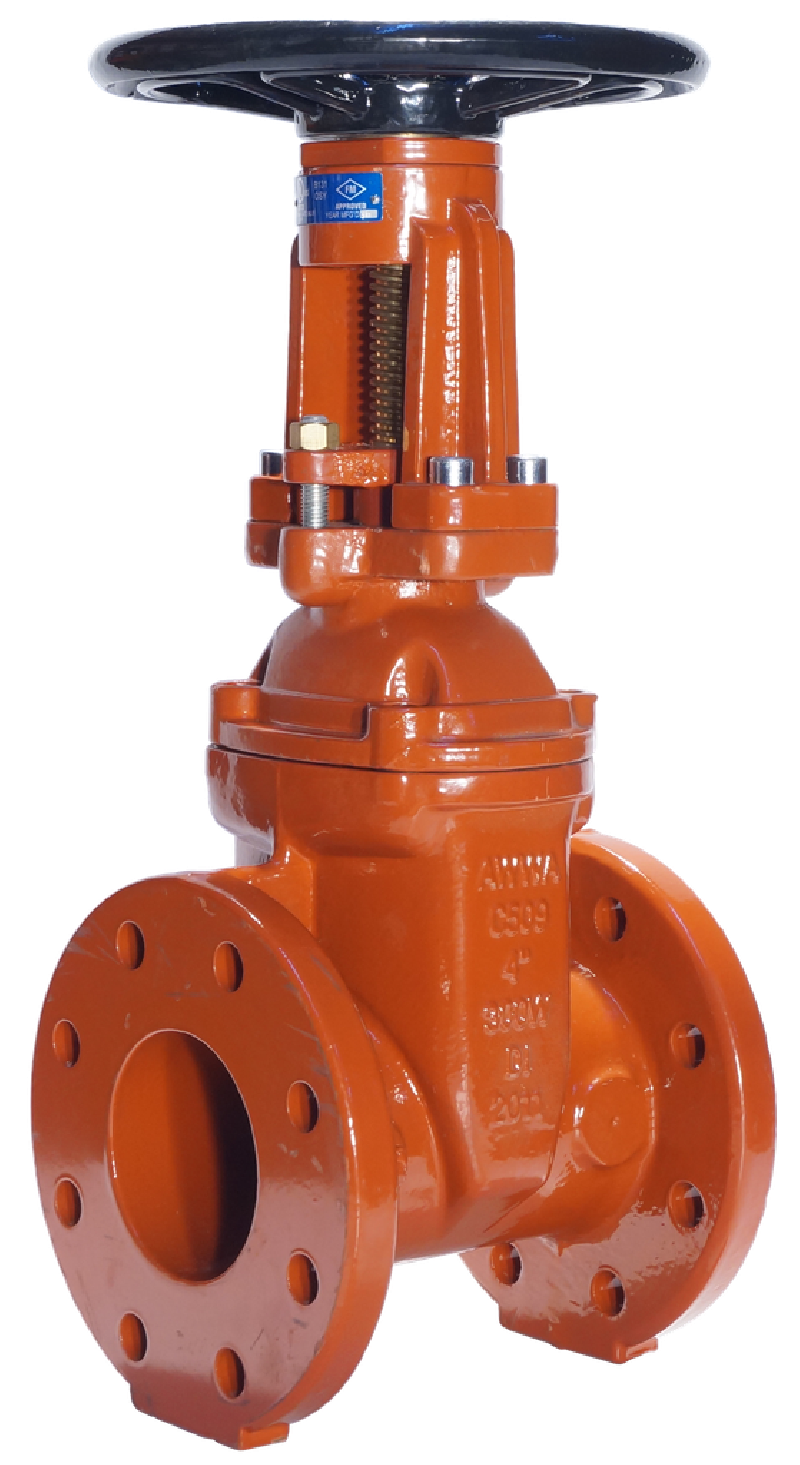

OS&Y Flange End Rising Stem Valve, Model B131-16, PN16, 250psi
search
  • OS&Y Flange End Rising Stem Valve, Model B131-16, PN16, 250psi

OS&Y Flange End Rising Stem Valve, Model F907, Ansi125 , for working pressure 1724 kPa

$550.00
Tax excluded

OS&Y Flange End Rising Stem Valve, Model B131-16, PN16, 250psi

Pipe Sizes (NB) : 100 (4")
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

OS&Y Flange End Rising Stem Valve, Model F907, Ansi125 , for working pressure 1724 kPa
Available with the end connections listed below.

Bolted Bonnet· Rising Stem·Resilient Wedge·Flanged ╳ Flanged

250 PSI/300 PSI/17.2 Bar Non-Shock Cold Working Pressure

CONFORMS TO AWWA　Ｃ509.

Coating-Electrostatically applied fuaion-bonded epoxy 0.2-0.5mm.inside and outside.Meets or

exceeds AWWA C550.Maximum operating temperature 160℉/71℃.

Freezing Weather Precaution-Subsequent to testing a piping system,valves should be in an open position to allow complete drainage.

Volon
003551

Data sheet

Approvals
FM
UL
Material
Ductile
Rated Pressure
250 psi /17.0 bar
Brands
Volon
