VENTRA Set /Assembly

PRODUCT FEATURES

VENTRA Set /Assembly

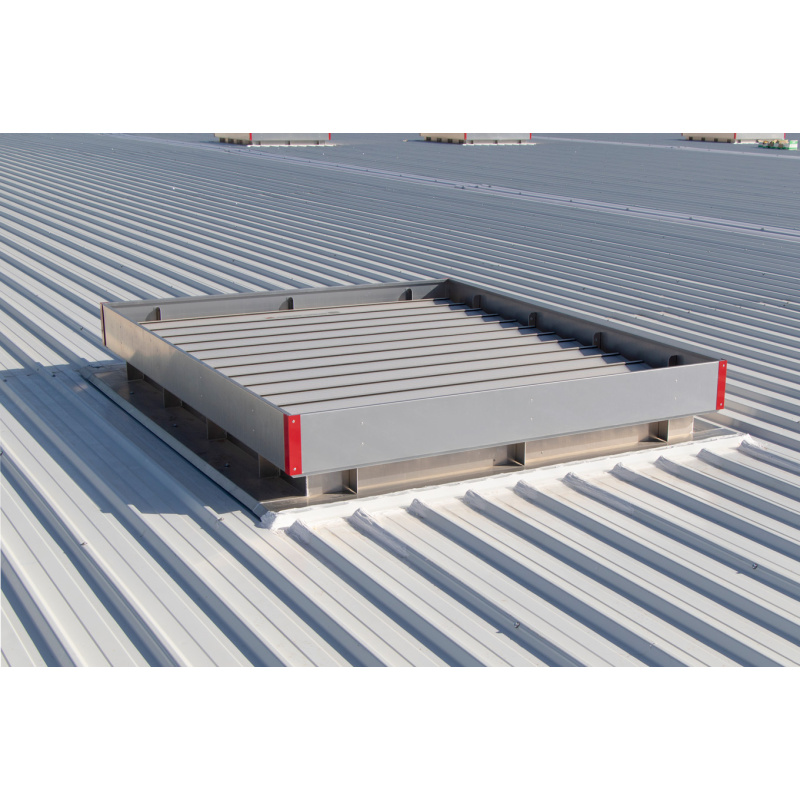

VENTRA is a multi louvred ventilator that provides an economic, non-powered method of ventilation, allowing the removal of large quantities of warm air and / or smoke from a building within a short period of time. The Ventra is suitable for air feed (facade), air extraction (facade an roof) and natural lighting. The vents are manufactured according to ISO 9001 quality control standards.The vents are formed from high quality corrosion resistant aluminium to ensure low maintenance requirements and watertightness. Various methods of operation using pneumatic or electric actuators are available. The ventilator design produces a versatile economic unit suitable for a wide range of applications. Available on large dimensions, up to 2400 x 3826 mm (width x length).

TYPICAL APPLICATIONS

Versatile scope of applications on roofs and facades, with an installation angle range from 0º to 90º. Installations: Industrial buildings, warehouses, logistics centres, shopping centres, atria, etc..

MATERIALS

Tempered aluminium, sea water, and corrosion resistant (EN AW 5754).

Corrosion resistant bearings.

Built-in weather resistant hydrophobic tape.

Note: aluminum is supplied untreated as standard. Possibility of being supplied with electrostatic painting (in any RAL color).

DIMENSIONS

Roof opening width: 300 – 2400 mm

Roof opening length: 746 – 3826 mm ( 17 louvres, max.)

OPENING ANGLE

Individual adjustable from 0° up to 90º

CONTROLS NATURAL VENTILATION

P1– single pipe compressed operation.

P2– double pipe compressed air operation.

M230V– electric motor.

Combination set– P1 + 230 V ou P2 + 230 V.

CONTROLS FIRE VENTILATION

P1F – Single pipe compressed air operation with fire function

P2F – Double pipe compressed air operation with fire function

M24V Electric motor

LOUVRES

AL

Single Aluminium

AL ISO

Double insulated aluminium

PC16

Polycarbonate 16mm, clear or opal

PC25

Polycarbonate 25mm, clear or opal

GLASS

Single or double glass

BASES

Single aluminium

Double wall aluminium with insulation.

FLANGES

S1

Flange for single glass

S2

Flange for double glass

S3

Flange for roofs, 45º bended

S4

Flange for roofs and facades

S5

Flange for upstand, 90º bended downwards

S6

Flange 90º bended upwards

SLS

Flange for skylight connection

(different polycarbonate thicknesses)

SC

Flange for connection with other flange

(vents connection) Male or female connection

SCM

Flange for male connection

SCF

Flange for female connection

* Custom flanges design and insulated flanges available upon request

WEIGHT

Depends on dimensions and type of infill

OPTIONS

Custom dimensions.

Powder-coated design (any RAL colour).

Bird or insect mesh.

Anti-fall grid 1200 J.
